The QS rectifier family is designed to operate in harsh temperature environments converting AC power to AC power. These rugged rectifiers are capable of full load operation across the temperature range without derating. Integrated into the CPS6000 power system, the QS rectifiers provide a battery reserve system with battery management features such as slope thermal compensation, low-voltage disconnect, battery high-temperature alarm and shorted-cell detection.
| Product Name | Input Voltage Range | Output Voltage | Output Current |
|---|---|---|---|
|
CPS6000 QS Series Rectifier
Documents
| 90-265VAC Single Phase | 42-58VDC | 15-50A |
(opens in a new window)

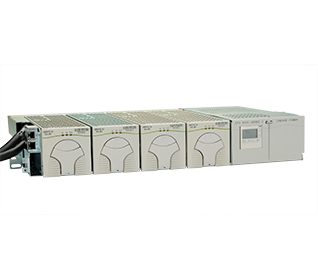

CPS6000 Cabinet Power System
High-density cabinet power system that’s easy to set up and operate. Available in 10 to 600A systems at -48V with either front- or rear-wiring configurations. Ideally suited for applications where space and durability in harsh environments are critical,
Read More(opens in a new window)
(opens in a new window)
CPS6000 M2 Power System
48V, 23-inch-wide, front-access, frame-mounted battery plant. Up to 1,000A capacity in a 15” deep power system that can operate from commercially available 208/220/240VAC single-phase power. 110VAC operation also available. Well suited for small central offices, huts/vaults, and large customer premise applications.
