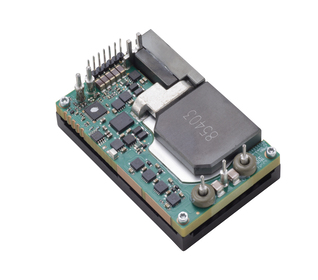

— — Osprey Bus Converters

Osprey-series non-isolated DC/DC bus converters offer high power and high efficiency to support 12VDC intermediate bus applications that require tight regulation. The QODE converters feature a wide 40 to 60VDC input voltage range and industry-standard, modified DOSA digital quarter-brick footprints. Available in 2000W, 1600W, and 1300W versions, the converters incorporate digital control, synchronous rectification technology, a regulated control topology, and innovative packaging techniques to achieve full-load efficiencies exceeding 97% at 12VDC output.

Benefits

High and flat efficiency, with peak efficiency up to 97.6%
Input voltage range of 40-60VDC
Solutions for 108A, 136A and 167A current requirements
Active current sharing control method for multimodule parallel operation
Low output ripple and noise
Modified DOSA quarter-brick footprint
Digital interface with PMBus™ Rev.1.2 compliance
Remote on/off control and remote sense
Output overcurrent/overvoltage protection
Overtemperature protection
Black box
Prebias startup
Wide operating temperature range: -40°C to 85°C, continuous

Applications

High-performance/AI networking equipment
Servers and storage
Supercomputers
Distributed power architechtures
Intermediate bus voltage
Automatic test equipment

Power Modules	Input Range	Vout	Iout	Efficiency	ECAD MODEL	Check Inventory	power module wizard
QODE167A0B Documents (opens in a new window) Soldering BMP_AN, Application Notes (opens in a new window) Filtering and Layout Guidelines for POL_AN, Application Notes (opens in a new window) Dual Output Modules_AN, Application Notes (opens in a new window) UDXS1212_DS, Data Sheets (opens in a new window) UDXS-UVXS Eval Board_AN, Application Notes (opens in a new window) Manufacturing Guidelines for xLynx_AN, Application Notes (opens in a new window) Reliability Considerations Comparing POL Module to Discrete Implementation, Application Notes (opens in a new window) QODE167A0B_DS, Data Sheets (opens in a new window) VDE_CERTIFICATE_APXX (opens in a new window) EU RoHSIII_UDXS1212A0Xxxx Series (opens in a new window) REACH_SVHC-240_UDXS1212A0X-xxx Series	54V (40-60V)	12V	167A	97.5%	PCB Symbol, Footprint & 3D Model	Check stock (opens in a new window)	Use the Tool (opens in a new window)
QODE136A0B Documents (opens in a new window) Soldering BMP_AN, Application Notes (opens in a new window) Filtering and Layout Guidelines for POL_AN, Application Notes (opens in a new window) Dual Output Modules_AN, Application Notes (opens in a new window) UDXS1212_DS, Data Sheets (opens in a new window) UDXS-UVXS Eval Board_AN, Application Notes (opens in a new window) Manufacturing Guidelines for xLynx_AN, Application Notes (opens in a new window) Reliability Considerations Comparing POL Module to Discrete Implementation, Application Notes (opens in a new window) QODE136A0B_DS, Data Sheets (opens in a new window) VDE_CERTIFICATE_APXX (opens in a new window) EU RoHSIII_UDXS1212A0Xxxx Series (opens in a new window) REACH_SVHC-240_UDXS1212A0X-xxx Series	54V (40-60V)	12V	136A	97.6%	PCB Symbol, Footprint & 3D Model	Check stock (opens in a new window)	Use the Tool (opens in a new window)
QODE108A0B Documents (opens in a new window) Soldering BMP_AN, Application Notes (opens in a new window) Filtering and Layout Guidelines for POL_AN, Application Notes (opens in a new window) Dual Output Modules_AN, Application Notes (opens in a new window) UDXS1212_DS, Data Sheets (opens in a new window) UDXS-UVXS Eval Board_AN, Application Notes (opens in a new window) Manufacturing Guidelines for xLynx_AN, Application Notes (opens in a new window) Reliability Considerations Comparing POL Module to Discrete Implementation, Application Notes (opens in a new window) QODE108A0B_DS, Data Sheets (opens in a new window) VDE_CERTIFICATE_APXX (opens in a new window) EU RoHSIII_UDXS1212A0Xxxx Series (opens in a new window) REACH_SVHC-240_UDXS1212A0X-xxx Series	54V (40-60V)	12V	108A	97.3%	PCB Symbol, Footprint & 3D Model	Check stock (opens in a new window)	Use the Tool (opens in a new window)
